Ib tug; Lub hom phiaj thiab tsom xam ntawm kev siv
Hauv kev tsim khoom lag luam thiab kev tsim cov hlua dav hlau yog cov neeg ua haujlwm ua kom tiav rau cov haujlwm sib txawv ntawm cov khoom siv sib txawv muaj kev cuam tshuam rau thaum lub sij hawm cov txheej txheem hoisting:
(1) Qhov kev sib cuag ntawm cov hlau xaim hlua thiab ncej tus ncej yog nquag mus deformation.
(2) Thaum lub sijhawm ntev haistting txheej txheem, tus kav hlau xoos hlua tsoo cov teeb meem kev nyab xeeb loj heev.
(3) OPLENURING txoj kev muaj cov nqi tsawg, nce cov nqi ntau lawm, thiab txo cov khoom lag luam sib tw muaj kev sib tw.
Ob; Cov Lus Qhia Txog Feem Ntau Cov Lus Qhia
Txhawm rau kom muaj kev nyab xeeb ntev, siv tau ob hom kev nyab xeeb, siv ob qho nyuaj.}}.
Hluav taws xob tswj xyuas t -1
Rau qhov yooj yim ntawm cov txheej txheem ntau lawm, cov kab ke hydraulic yog tswj hwm los ntawm cov chaw taws teeb tswj; Cov chaw taws teeb tswj tau tuaj yeem nres ntawm txhua txoj haujlwm .
Kev lag luam qib teeb taws teeb tswj qhov system t-2
Clamping (lub ntsiab lub nqaj); Txais yuav hydraulic roj cov roj tswj, cov roj raj kheej zawm .
Nias los ntawm ob tog
Fixture System T -3
Txhawm rau kom yoog mus rau lub tiaj thiab goose caj dab qauv, nrog rau kev faib tawm cov ntsiab lus ntawm kev txhawb nqa, cov cuab yeej ua lag luam synchronous tsim
Bracket system t -4
3: kev txwv tsis pub thiab cov cim kev teeb tsa luv luv
|
1: Cov lus tsis tseem ceeb |
||||
|
1 |
Cov Khoom Siv Khoom Siv: FZ-CJ -90 d |
|||
|
2 |
Cov Khoom Siv Lub Npe: 90℃flip cuab tam |
|||
|
3 |
Cov Khoom Siv Qhov Loj: 12000mm * 2450mm * 800mm |
|||
|
4 |
Clamping ntau: 1050mm --1450 hli |
|||
|
5 |
Haum rau lub tsheb ntev: 6000mm -14000 hli (nthuav dav) |
|||
|
6 |
Siv tau Goeneneck nqaj poob: tsis pub dhau 560Mm (suav nrog ncaj nqaj hlau qauv) |
|||
|
7 |
Qhov system ntsuas siab: tsawg dua los yog sib npaug rau 15mps |
|||
|
8 |
Cov Roj Hydraulic: L-Hm -46 |
|||
|
2: Lub ntsiab configuration tsis muaj |
||||
|
Muaj pes tsawg tus lej |
Cheebtsam Lub Npe |
Cov lus qhia tshwj xeeb |
sau ntawv |
|
|
1 |
Roj Txhuam Hom Roj |
iav twj |
Yuci |
|
|
2 |
Roj twj tso kua mis |
20 milliliters |
lub hom phiaj |
|
|
3 |
Tsav hom |
Lisheng lub cev muaj zog |
Tus shandong |
|
|
4 |
Tsav Qauv |
Y132M-4 |
||
|
5 |
Lub cev muaj zog |
5.5kw |
lub hom phiaj |
|
|
6 |
Qauv ntawm Lifting Roj Kheej |
HSG80 / 700 |
Hnav thiab muag style |
|
|
7 |
Keeb kwm / Hom Ntawm Lifting Roj Lub Tog Raj Kheej |
Ci ntsa iab |
Tus txha |
|
|
8 |
Clamping kheej kheej qauv qauv |
HSG63 / 400 |
Hnav thiab muag style |
|
|
9 |
Keeb kwm / hom ntawm clamping kheej kheej |
Ci ntsa iab |
Tus txha |
|
|
10 |
Nkaus nkaus xwb hom |
Cov chaw taws teeb tswj |
Muaj Qeb |
|
|
11 |
Siab tshaj plaws lub kaum sab xis ntawm ib sab |
90Trees |
||
|
12 |
Tus naj npawb ntawm kev nqa cov chaw |
8 teev |
tus kheej ua |
|
|
13 |
Xauv Ntaus |
8 teev |
tus kheej ua |
|
|
14 |
Cov Khoom Siv Hluav Taws Xob Ntawm Cov Chaw Tswj Xyuas |
tej chaws |
Zhejiang |
|
|
15 |
Synchronous latting txoj kev |
Xyaw ua ke cov yeeb nkab |
||
|
16 |
Lub ntsiab qauv |
Vuam ntawm cov ntaub ntawv profile |
||
|
17 |
Khoom Xim Xim |
OUmanlan |
||
|
18 |
Khoom Zoo |
Txog 4200KG |
||
|
3: Kev tiv thaiv kev nyab xeeb ntau lawm |
||||
|
1 |
Hydraulic system Overflow Valve |
|||
|
2 |
Kev Nyab Xeeb thiab Stability Valve |
|||
|
3 |
Anti decoupling ntaus ntawv |
|||
|
4: Kev muab hluav taws xob ntau |
||||
|
1 |
Me nyuam |
|||
|
5: Lub Sijhawm Warranty |
||||
|
1 |
Los ntawm lub caij xa tawm, tag nrho lub tshuab los nrog ib-xyoo dawb warranty . |
|||
|
6: cov khoom siv ntawm cov khoom siv, cov nyom ntawm tus kheej muab los ntawm tus neeg xav tau, thiab cov kev teeb tsa ntawm lub xaib |
||||
|
Cov Khoom Siv Ntawm Cov Khoom Siv: |
||||
|
Muaj pes tsawg tus lej |
lub npe |
sau ntawv |
||
|
1 |
Tus Thawj Coj Lub Cev: 1 Txheej |
Xws li: 1 teeb ntawm chaw nres tsheb hydraulic, 1 txheej ntawm cov chaw tswj hluav taws xob, 16 txheej ntawm cov khoom siv nyab xeeb, thiab 8 teev ntawm Lifting Clamps |
||
|
2 |
Kev Nyab Xeeb Kev Nyab Xeeb: 4 teeb |
|||
|
Tus neeg yuav khoom yuav tsum muaj: |
||||
|
1 |
Roj Hydraulic |
L-hm -46 |
||
|
2 |
Fais Fab Kab |
4- tus tub ntxhais 4- square |
||
|
Cov mob chaw teeb tsa: 1: Qhob hauv pem teb 2: Hauv av qaij kaum sab xis: tsawg dua 8 degrees |
||||
|
NCO TSEG: Cov khoom lag luam saum toj no suav nrog cov cuab yeej ua tiav kom ntseeg tau tias ib txwm ua haujlwm thiab ua haujlwm. |
||||

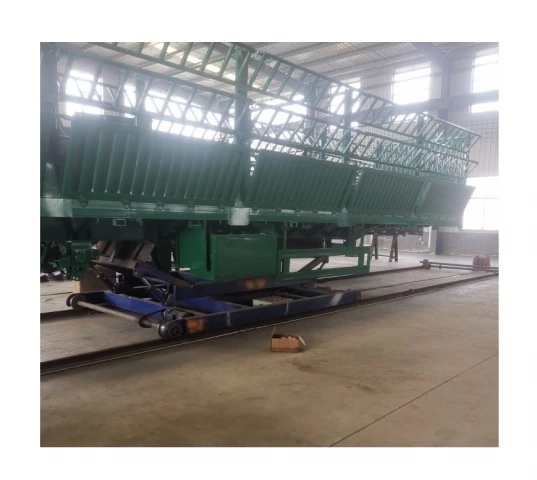

Zuag qhia tag nrho cov zaub ntawm 90℃flipping fixture
Zuag qhia tag nrho qauv t -5
Kev Ua Haujlwm Daim Duab T -6
